Elitegroup ECS P4S5A (SiS 645 : Pentium 4 DDR )
By The Mad


Packaging - Caractéristiques

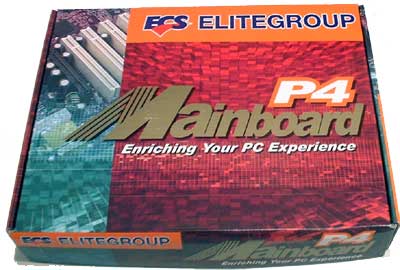

Comme toujours, jettons un coup d'oeil au contenant avant d'etudier le contenu :


Une bien belle boite... Enrichissons donc notre experience en voyant ce qu'elle contient :

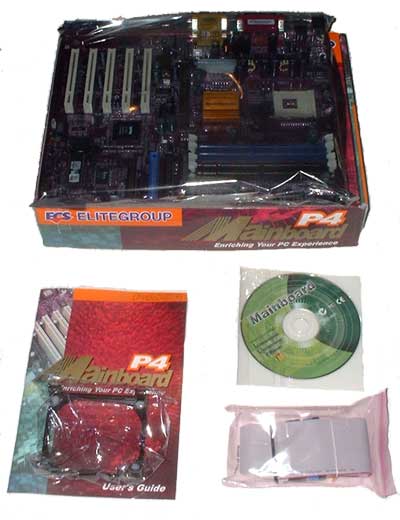

Bref, la boite contient le strict minimum : la carte, le manuel, une nappe IDE, une nappe FDC, un CD de driver quasiment inutile, et un support pour radiateur Socket478 qui n'est pas monté en standard

  • Caractéristiques de la carte

Voyons un peu les caractéristiques de la cartes selon ECS :

Intel® Pentium® 4 processor (478 pins)

Form Factor
Form Factor: ATX
Dimensions: 305mm*244mm
PCB : 4 Couches (Layer)

SiS645 & SiS961 Chipset
SiS645 Host/Memory controller with AGP4X North Bridge Single Chipset
SiS® 961 MuTIOL Media I/O
LPC I/O - ITE8705F
System Hardware Monitor: Built-in ITE8705F
LAN: MAC integrated in SiS® 961 & PHY on board (Optional)
AC97 Audio Codec
Compliant with AC97 2.1 specification

2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously)
Two 184-pin DDR SDRAM (DDR200, DDR266,DDR333) or
Two 168-pin 3.3V SDRAM (PC100, PC133,PC166)
Maximum: 2.0GB (DDR SDRAM or SDRAM)

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI
Full Support for ACPI revision 1.0 specification

Expansion Slot:
1x  Universal-AGP slot for both 2x/4xAGP (v2.0 compliant)
5x  32-Bit PCI slots (v2.2 compliant)
1x  AMR slot

I/O Interface :

Supports Plug and Play function
PS/2 keyboard and PS/2 mouse connectors
Dual USB Ports and LAN connectors (optional)
One - EPP/ECP mode parallel port
Two - 16550 high-speed serial I/O ports
Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100)
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
ATX Power Supply Connector
ports, Headers and Others:
- IrDA header
- Front Panel MIC/Line-out header
- Two Extra USB header
- HDD LED, Reset Switch, Power Switch headers
- CPU and Case Fan headers
- LAN Card Wake Up Header




Suite ( Présentation du chipset (SiS 645) )
